S Series Servo Motor Injection Molding Machine

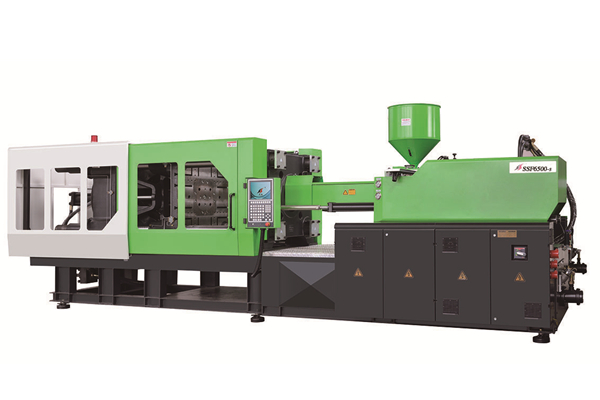

650TON Injection Molding Machine (SSF6500-S)

650TON Injection Molding Machine (SSF6500-S)
650TON Injection Molding Machine (SSF6500-S)

Description

Reviews

SSF6500-S Parameters
Items Parameter Unit SSF6500-S
Injection Unit Screw diameter  mm A B C D
90 95 100 105
Screw L/D ratio L/D 22.2 21 20 19
Shot volume(theoretical) Cm3 2735 3048 3377 3723
Injection weight(PS) g 2489 2774 3073 3388
OZ 88 98 108 119
Plasticizing Capacity g/s 73 80 90 100
Injection rate g/s 552 612 679 748
Injection pressure Mpa 186 167 151 137
Screw speed rpm 140
Clamping unit Clamp force KN 6500
Open stroke mm 900
Distance between tie bars (W*H) mm 880*880
Max mould thickness mm 900
Min mould thickness mm 350
Ejector stroke mm 250
Ejector force KN 200
Ejector number PC 17
Dia of mould location hole mm 200
Others Max pump pressure Mpa 16
Heating power KW 42
Machine dimension(L*W*H) m 9.8*2.3*2.7
Machine weight T 28
Oil tank capacity L 1200
Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.





Mold platen drawing





Description:

SSF6500-S injection molding machines applies to the injection molding process of various kinds of thermoplastics. Clamp force is 650T.

Advantages of servo motor

1. There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy saving injection molding machines will save 20%~80% energy and bring you prominent economic benefit.

2. High precision, high response: The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure, flow closed-loop control, allowing the repeat precision error to be less than 1%. It only takes 0.05 second to reach the largest output power.

3. Save the cooling water: No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is greatly reduced.

4. Super energy saving: Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and fixed speed motor. It can save 60% of the power.(Different kinds of products have different energy saving effects.

5. Low noise: The noise is below 78db. Servo motor has almost no noise when no movement of machine.



Standard features, components, optional functions & auxiliaries

Standard features

Double-cylinder balanced injection system

Multi-stage pressure & speed injection

Back pressure adjustment device

Low pressure mold protection

Double hydraulic core pulling valve block

Multiple hydraulic ejector knock-out

Mechanical, Electrical safety device

Auto lubrication system

Hydraulic pressure full proportional control

All computer control system

Mold data memory system (Can save 199 set molds data)

T-slot mold platen



Standard components

Mechanical leveling pad

Extended nozzle

Spare parts (O-rings)

Tool box

Lubrication grease



Optional functions & Auxiliaries

Double air blast valve

Double core pulling valve

Water regulation meter

Ceramic heaters

Water flow regulator

Three color alarming light

Euromap 12,67 robot interface

Oil bypass filter

Back pressure valve controller by computer

Hydraulic safety device



Robot

Hopper dryer

Auto loader

Hopper magnet

Mold clamps

Chiller

Plastic dehumidifier

Mold temperature controller

Oil temperature controller



Application

  Hardware industry plastic parts, electronic cover, packing products like PET performs, caps and daily used commodity, Stationery, PVC pipe fitting, Agriculture irrigation, Automobile parts, plastic crates and so on.
