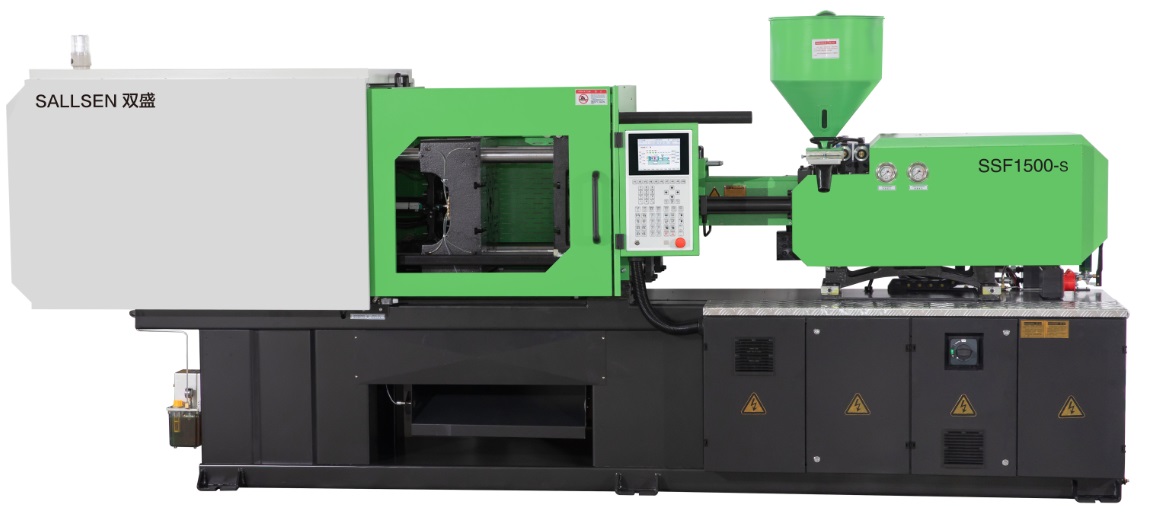

S Series Servo Motor Injection Molding Machine

Cell-phone Case Injection Molding Machine

high quality
Cell-phone Case Injection Molding Machine
Cell-phone Case Injection Molding Machine
Cell-phone Case Injection Molding Machine

Description

Reviews

Items Description Unit SSF1500-J
Injection Unit Screw diameter mm A B C
25 28 30
Screw L/D ratio L/D 23.5 21 19.6
Shot volume(theoretical) Cm3 88 110 127
Injection weight(PS) g 80 100 116
Oz 2.8 3.5 4.1
Injection rate g/s 90 113 130
Injection pressure Mpa 391 312 272
Screw speed rmp 230
Clamping unit Clamp force KN 1500
Open stroke mm 400
Distance between tie bars (W*H) mm 430*430
Max mould thickness mm 480
Min mould thickness mm 160
Ejector stroke mm 130
Ejector force KN 45
Ejector number PC 5
Dia of mould location hole mm 125
Others Max pump pressure Mpa 17
Servo motor power KW 22
Heating power KW 8.5
Machine dimension(L*W*H) m 4.8*1.35*1.9
Machine weight T 4.1
Oil tank capacity L 250
Notes:(1)Theoretical injection volume=screw diameter×screw stroke
(2)Actual injection weight is 91% of the theoretical volume(PS)
(3)Injection speed, plasticizing capacity are PS values.



1.   Phase servo motor, with larger world well known Eckerle gear Pump, increase the injection speed;

2.   For thin thickness product;

3.   Strong mold platen.



Product Name: Iphone 6&7 Cell-phone Case

Raw Material:PC

Product Weight(G):22

Thickness: 0.7mm

Clamp Force(KN):  1500

Tie Bars(H*V)(MM):430*430

Cavity: 2
