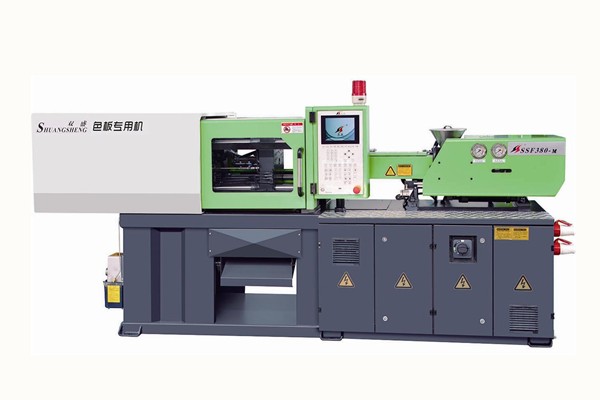

Color Chips Making Injection Molding Machine(SSF380-M)

Small injection molding machine for color matching

Concact Us Now

Description

Reviews

SSF380-M Parameters
SSF380-M Parameters
Clamping unit	Clamp force	KN	380
	Open stroke	mm	235
	Distance between tie bars (W*H)	mm	240*240
	Max mould thickness	mm	270
	Min mould thickness	mm	80
	Ejector stroke	mm	60
	Ejector force	KN	17.5
	Ejector number	PC	1
	Dia of mould location hole	mm	80
Others	Max pump pressure	Mpa	14
	Pump motor power	KW	4
	Heating power	KW	3.2
	Machine dimension(LWH)	m	2.91.11.4
	Machine weight	T	1.35
	Oil tank capacity	L	90

Notes:(1)Theoretical injection volume=screw diameter×screw stroke;

(2)Actual injection weight is 91% of the theoretical volume;

(3)All the data is PS values.

Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.

Mold platen drawing:

With the development of plastic injection technology, plastic masterbatches plays an important and vital role to all kinds of plastic products, in order to meet the requirements of color matching for masterbatches industry, to test the masterbatches dispersion and plasticizing, we customized a special small injection molding machines for lab- color chips making machine.

The main features of this machine are;

1.Special designed screw, improve plasticizing;

2.Machine is small, easy to operate, investment and maintenance cost is low;

3.For professional, so to be outstanding

Color chips making injection molding machines is special designed for masterbatch and pigment suppliers, the raw material to be tested widely included but not limited like PA,PC,ABS,TPU,PET,PS,PP,HDPE,LDPE.

This test platic injection moulding machine is widely applied by world well known customers such as clariant,NHH, with good capacity, it's a good choice for masterbatch and pigment manufacturers.

You can send us sample for free testing before you order the injection machine, you can fully assure to buy this machine after your verifications.

You can also send us the color plate's size, we can design the mold for you per your request and recommend the most suitable plastic injection machine for you.

Our standard color chips size and images;

Product Name	Color Chips
Raw Material	PP
Product Weight（G）	13
Screw Dia	25mm
Injection weight	37g
Clamp Force（KN）	380
Tie Bars(H*V)（MM）	240*240
Product Size（MM）	7050（LW）
Cavity	2
Raw Material Applicable	PA, PC, ABS, TPU, PET, PS, PP, HDPE, LDPE….
