S Series Servo Motor Injection Molding Machine

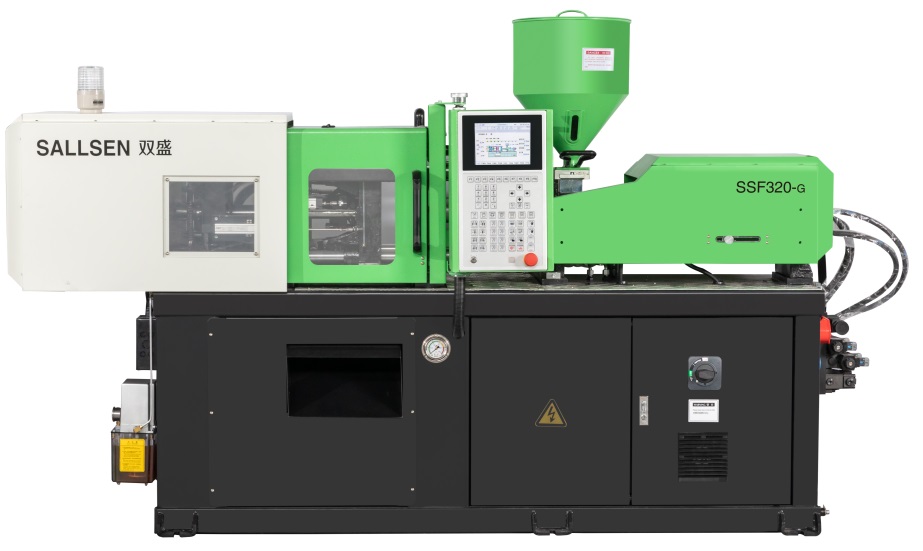

32 TON Micro Precise Injection Molding Machine(SSF320-G)

32 TON Micro Precise Injection Molding Machine(SSF320-G)
32 TON Micro Precise Injection Molding Machine(SSF320-G)

Description

Reviews(1)

Shuangsheng is the top injection molding machine manufacturer in China. It has been providing manufacturing and customized injection molding machine services to customers worldwide. The clamping force of the injection molding machine provided by our servo system ranges from 32T to 480T.

Features of Our Servo Injection Molding Machine

  • Double cylinder balanced injection system;
  • Multi-stage pressure &speed injection;
  • Back pressure adjustment device;
  • Low-pressure mould protection;
  • Single hydraulic core pulling and inserting;
  • Multiple hydraulic ejector knock-out;
  • Mechanical, electrical safety device;
  • Auto lubrication system;
  • Hydraulic pressure full proportional control;
  • Computer control system;
  • Molding data memory system;
  • Automatic mould adjust function;
  • Energy-saving with servo motor;

Parameters of 320kn Injection Plastic Machine As Below

SSF320-G Parameters
Items Parameter Unit SSF320-G
Injection Unit Screw diameter  mm A B C
19 22 25
Screw L/D ratio L/D 20.5 17.7 15.5
Shot volume(theoretical) Cm3 22.6 30 38
Injection weight(PS) g 20.6 27 34
OZ 0.7 0.9 1.2
Plasticizing g/s 2 2.6 3.3
Injection rate g/s 19 25 32
Injection pressure Mpa 280 209 162
Screw speed rpm 190
Clamping unit Clamp force KN 320
Open stroke mm 155
Distance between tie bars (W*H) mm 255*220
Max mould thickness mm 260
Min mould thickness mm 80
Ejector stroke mm 40
Ejector force KN 13
Ejector number PC 1
Dia of mould location hole mm 55
Others Max pump pressure Mpa 14
Servo motor power KW 7.5
Heating power KW 2.6
Machine dimension m 2.85*0.88*1.35
Machine weight T 1
Oil tank capacity L 85

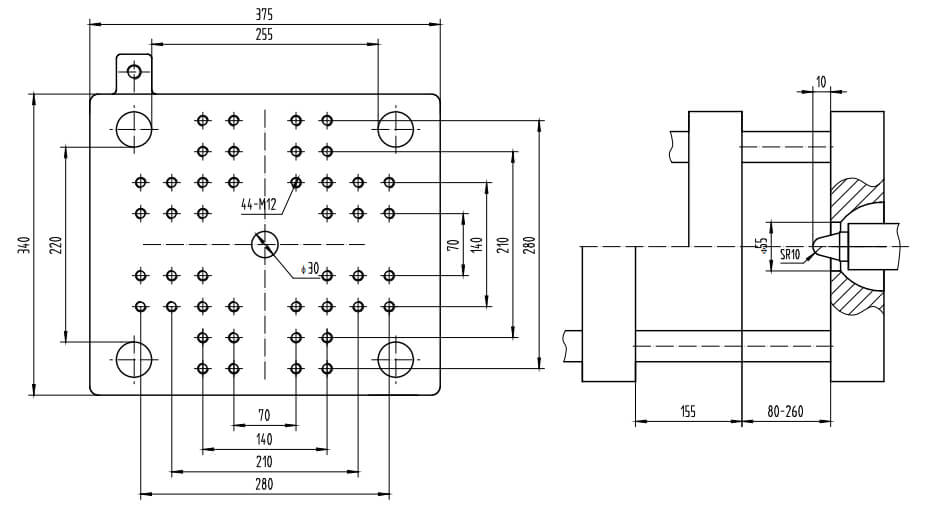

Mold platen drawing



Parts That Can Be Produced

Customized injection molding machine solutions for you now






Our smallest SSF320-S injection molding machines are the servo motor series, applicable to produce precision plastic parts like gears, plastic color chips and small children toys, with its small size, fast cycle time, friendly operation screen, warmly welcomed by customers.

Advantages of servo motor
1.There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy saving injection molding machines will save 20%~80% energy and bring you prominent economic benefit.
2.High precision, high response: The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure, flow closed-loop control, allowing the repeat precision error to be less than 1%. It only takes 0.05 second to reach the largest output power.
3.Save the cooling water: No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is greatly reduced.
4.Super energy saving: Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and fixed speed motor. It can save 60% of the power.(Different kinds of products have different energy saving effects.
5.Low noise: The noise is below 78db. Servo motor has almost no noise when no movement of machine.
