Laboratory Injection Molding Machine

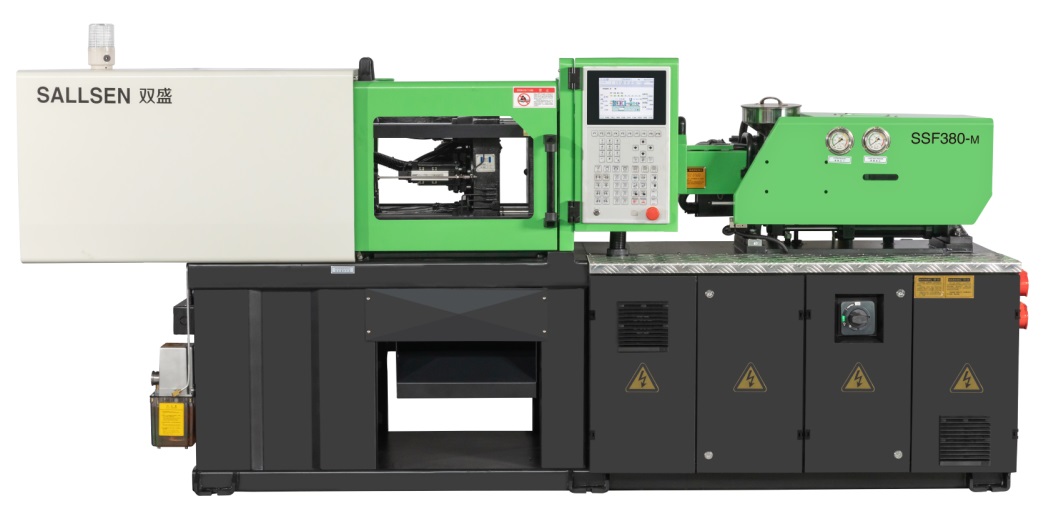

Color Chips Making Injection Molding Machine(SSF380-M)

Small injection molding machine for color matching
Color Chips Making Injection Molding Machine(SSF380-M)
Color Chips Making Injection Molding Machine(SSF380-M)
Color Chips Making Injection Molding Machine(SSF380-M)

Description

Reviews

SSF380-M Parameters
Clamping unit

Clamp force

KN 380
Open stroke mm 235
Distance between tie bars (W*H) mm 240*240
Max mould thickness mm 270
Min mould thickness mm 80
Ejector stroke mm 60
Ejector force KN 17.5
Ejector number PC 1
Dia of mould location hole mm 80
Others Max pump pressure Mpa 14
Pump motor power KW 4
Heating power KW 3.2
Machine dimension(L*W*H) m 2.9*1.1*1.4
Machine weight T 1.35
Oil tank capacity L 90


Notes:(1)Theoretical injection volume=screw diameter×screw stroke;

(2)Actual injection weight is 91% of the theoretical volume;

(3)All the data is PS values.

Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.

Mold platen drawing:





With the development of plastic injection technology, plastic masterbatches plays an important and vital role to all kinds of plastic products, in order to meet the requirements of color matching for masterbatches industry, to test the masterbatches dispersion and plasticizing, we customized a special small injection molding machines for lab- color chips making machine.

The main features of this machine are;
1.Special designed screw, improve plasticizing;
2.Machine is small, easy to operate, investment and maintenance cost is low;
3.For professional, so to be outstanding

Color chips making injection molding machines is special designed for masterbatch and pigment suppliers, the raw material to be tested widely included but not limited like   PA,PC,ABS,TPU,PET,PS,PP,HDPE,LDPE.

This test platic injection moulding machine is widely applied by world well known customers such as clariant,NHH, with good capacity, it's a good choice for masterbatch and pigment manufacturers.
You can send us sample for free testing before you order the injection machine, you can fully assure to buy this machine after your verifications.
You can also send us the color plate's size, we can design the mold for you per your request and recommend the most suitable plastic injection machine for you.

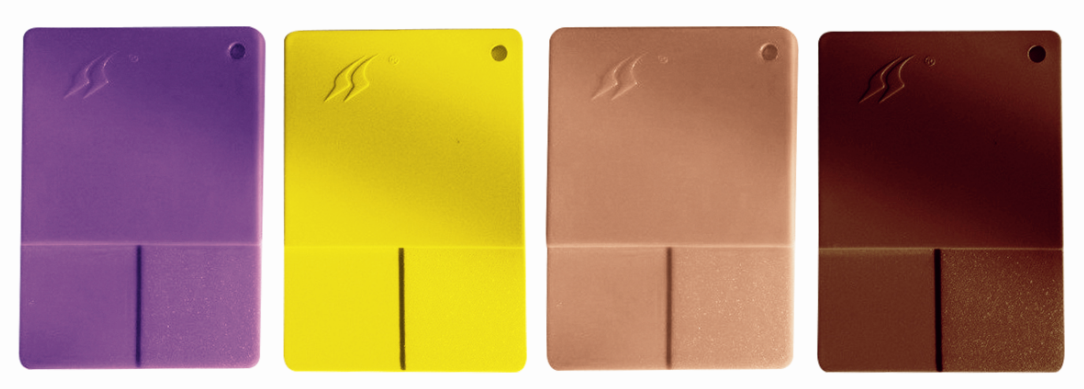

Our standard color chips size and images;


Product Name

Color Chips

Raw Material

PP

Product Weight(G)

13

Screw Dia

25mm

 Injection weight

37g

Clamp Force(KN)

380

Tie Bars(H*V)(MM)

240*240

Product Size(MM)

70*50(L*W)

Cavity

2

Raw Material Applicable

PA, PC, ABS, TPU, PET, PS, PP, HDPE, LDPE….
