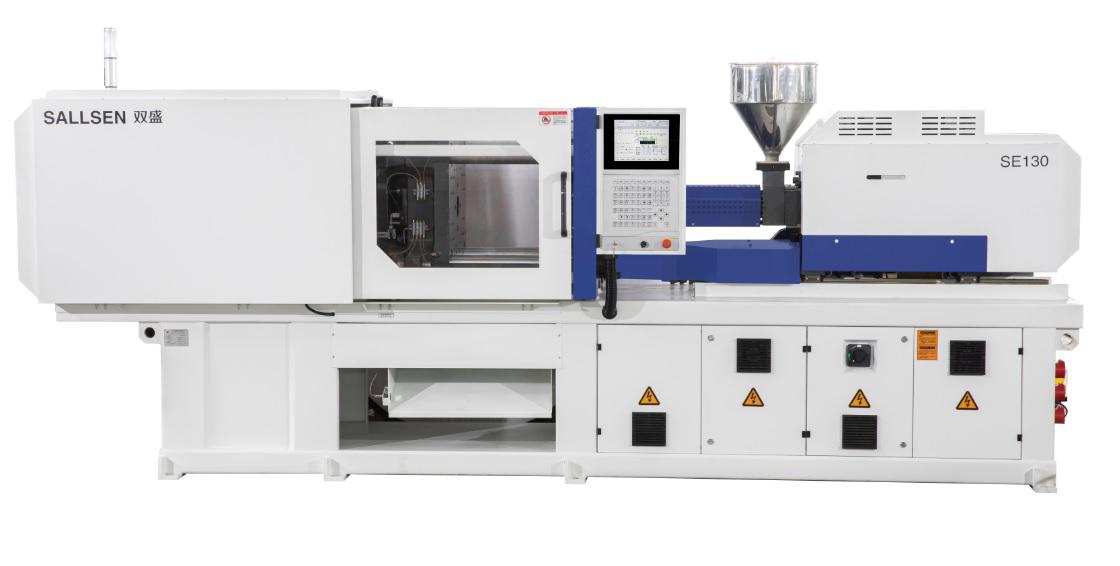

Electric Injection Moulding Machine

Full Electric Injection Moulding Machine

Full Electric Injection Moulding Machine
Full Electric Injection Moulding Machine
Full Electric Injection Moulding Machine

Description

Reviews

Parameters

SS FULL ELECTRICAL INJECTION MOLDING MACHINE PARAMETERS
Machine Model 130T
Injection Unit S105 S135 S175
Screw Diameter mm 22 25 28 25 28 32 28 32 36
Screw L/D Ratio L/D 25 22 19.6 24.6 22 19.2 25 22 19.5
Shot Volume cm3 41.8 54 67.7 54 67.7 88.5 86 112.6 142.5
Injection Weight(PS) g 38 49 61.6 49 61.6 80.5 78 102.5 129.7
Injection Speed mm/s 350 350 350 350 350 350 350 350 350
Injection Rate cm3/s 133 172 215 172 215 281 215 281 356
Injection Pressure Mpa 421 326 260 326 260 199 260 199 157
Injection Stroke mm 110 110 140
Sphere diameter of nozzle mm SR10 SR10 SR10
Screw Speed rpm 400 400 400
Clamping Unit
Clamping force KN 1300
Toggle Stroke mm 350
Space Between Tie-Bars(WxH) mm               460X410
Max. Mold Height mm 500
Min. Mold Height mm 180
Dia of mould location hole mm 100
Ejector Stroke mm 100
Ejector Tonnage KN 35
Ejection number pc 5
Others
Pump Motor Power KW 40
Heater Power KW 8.8 9.5
Machine Dimension m 5X1.4X1.7
Machine Weight ton 5.3

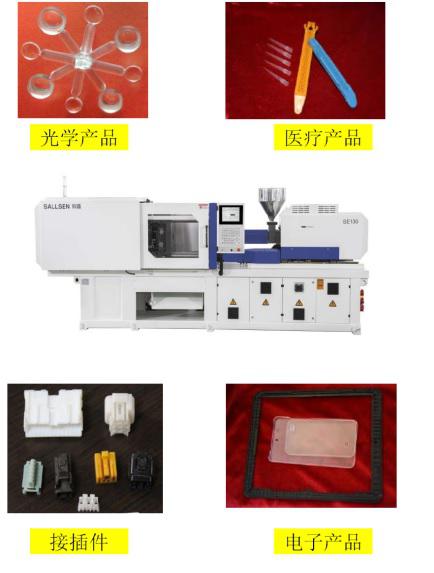

Application
