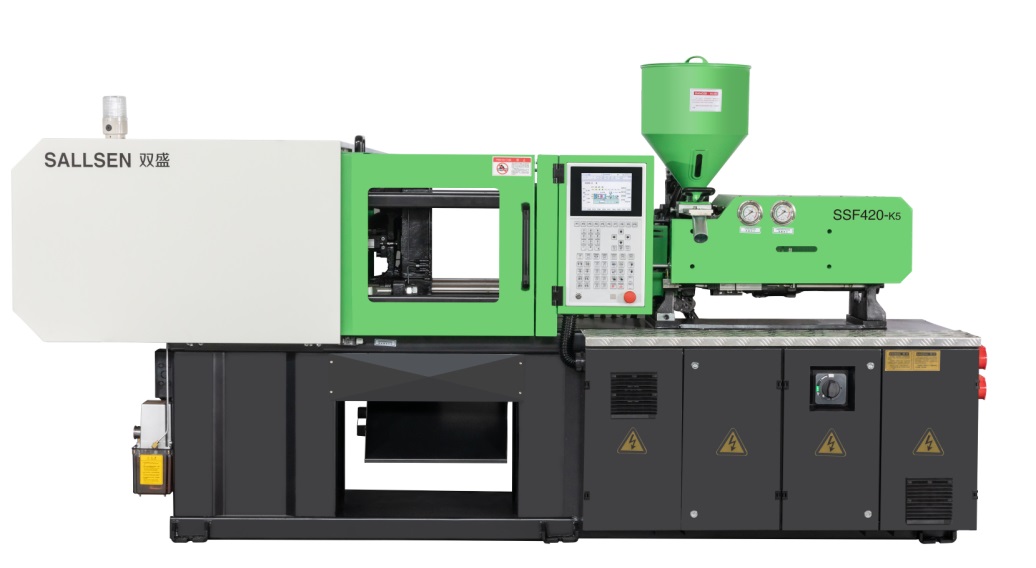

High Precise Small Injection Molding Machine-Euro style
Description
Reviews
Main Features
- Automatic production, no secondary pollution, meets sanitary requirements
- Continuous production and high efficiency
- Controllable clamping force and good repeatability
Injection Molding Machine Parameters
| SSF420 Parameters | ||||||
| Items | Parameter | Unit | SSF420 | |||
| Injection Unit | Screw diameter | mm | S | A | B | C |
| 22 | 25 | 27 | 30 | |||
| Screw L/D ratio | L/D | 22.6 | 19.8 | 18.4 | 16.5 | |
| Shot volume(theoretical) | Cm3 | 36 | 47 | 55 | 68 | |
| Injection weight(PS) | g | 33 | 43 | 50 | 62 | |
| Oz | 1.2 | 1.5 | 1.9 | 2.1 | ||
| Plasticizing | g/s | 3 | 3.5 | 4.3 | 5.9 | |
| Injection rate | g/s | 33 | 43 | 50 | 62 | |
| Injection pressure | Mpa | 312 | 241 | 207 | 168 | |
| Screw speed | rpm | 200 | ||||
| Clamping unit | Clamp force | KN | 420 | |||
| Open stroke | mm | 245 | ||||
| Distance between tie bars (W*H) | mm | 260*260 | ||||
| Max mould thickness | mm | 300 | ||||
| Min mould thickness | mm | 100 | ||||
| Ejector stroke | mm | 65 | ||||
| Ejector force | KN | 25 | ||||
| Ejector number | PC | 1 | ||||
| Dia of mould location hole | mm | 80 | ||||
| Others | Max pump pressure | Mpa | 16 | |||
| Pump motor power | KW | 5.5 | ||||
| Heating power | KW | 3.2 | ||||
| Machine dimension(L*W*H) | m | 3.1*1.1*1.4 | ||||
| Machine weight | T | 1.65 | ||||
| Oil tank capacity | L | 95 | ||||
Mold Platen drawing
Application
Industry: electrical instruments, auto parts, medical parts, packaging, daily necessities, aviation tableware, children's toys, construction pipes, laboratories, etc.
Products: electrical enclosures, socket plates, gears, cages, droppers, bottle caps, preforms, cups, disposable plastic cutlery, hot wheels, PVC pipe fittings, color plates, splines, etc.
