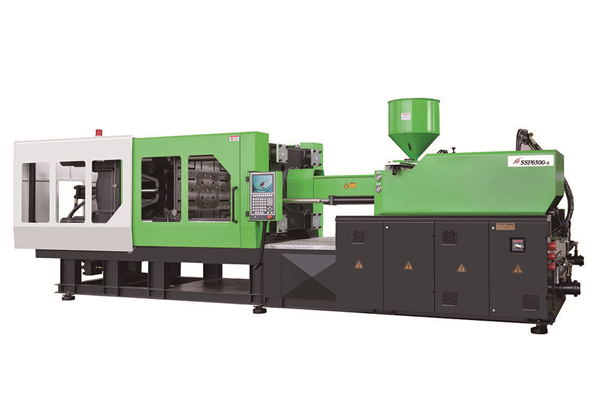

560TON Injection Molding Machine (SSF5600-S）
Description
Reviews
|
SSF5600-S Parameters |
|||||
|
Items |
Parameter |
Unit |
SSF5600-S |
||
|
Injection Unit |
Screw diameter |
mm |
A |
B |
C |
|
80 |
85 |
90 |
|||
|
Screw L/D ratio |
L/D |
22.3 |
21 |
19.8 |
|
|
Shot volume(theoretical) |
Cm3 |
2210 |
2498 |
2800 |
|
|
Injection weight(PS) |
g |
2011 |
2273 |
2548 |
|
|
OZ |
71 |
81 |
90 |
||
|
Plasticizing Capacity |
g/s |
70 |
75 |
82 |
|
|
Injection rate |
g/s |
426 |
480 |
538 |
|
|
Injection pressure |
Mpa |
184 |
163 |
145 |
|
|
Screw speed |
rpm |
150 |
|||
|
Clamping unit |
Clamp force |
KN |
5600 |
||
|
Open stroke |
mm |
820 |
|||
|
Distance between tie bars (W*H) |
mm |
830*830 |
|||
|
Max mould thickness |
mm |
850 |
|||
|
Min mould thickness |
mm |
350 |
|||
|
Ejector stroke |
mm |
230 |
|||
|
Ejector force |
KN |
150 |
|||
|
Ejector number |
PC |
13 |
|||
|
Dia of mould location hole |
mm |
200 |
|||
|
Others |
Max pump pressure |
Mpa |
16 |
||
|
Heating power |
KW |
34 |
|||
|
Machine dimension(L*W*H) |
m |
8.9*2.2*2.6 |
|||
|
Machine weight |
T |
21 |
|||
|
Oil tank capacity |
L |
1100 |
|||
|
Notes: (1)Theoretical injection volume=screw diameter×screw stroke; |
|||||
Mold platen drawing
Description:
SSF5600-S injection molding machines applies to the injection molding process of various kinds of thermoplastics. Clamp force is 560T.
Advantages of servo motor
1. There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy saving injection molding machines will save 20%~80% energy and bring you prominent economic benefit.
2. High precision, high response: The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure, flow closed-loop control, allowing the repeat precision error to be less than 1%. It only takes 0.05 second to reach the largest output power.
3. Save the cooling water: No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is greatly reduced.
4. Super energy saving: Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and fixed speed motor. It can save 60% of the power.(Different kinds of products have different energy saving effects.
5. Low noise: The noise is below 78db. Servo motor has almost no noise when no movement of machine.
Standard features, components, optional functions & auxiliaries
Standard features
Double-cylinder balanced injection system
Multi-stage pressure & speed injection
Back pressure adjustment device
Low pressure mold protection
Double hydraulic core pulling valve block
Multiple hydraulic ejector knock-out
Mechanical, Electrical safety device
Auto lubrication system
Hydraulic pressure full proportional control
All computer control system
Mold data memory system (Can save 199 set molds data)
T-slot mold platen
Standard components
Mechanical leveling pad
Extended nozzle
Spare parts (O-rings)
Tool box
Lubrication grease
Optional functions & Auxiliaries
Double air blast valve
Double core pulling valve
Water regulation meter
Ceramic heaters
Water flow regulator
Three color alarming light
Euromap 12,67 robot interface
Oil bypass filter
Back pressure valve controller by computer
Hydraulic safety device
Robot
Hopper dryer
Auto loader
Hopper magnet
Mold clamps
Chiller
Plastic dehumidifier
Mold temperature controller
Oil temperature controller
Application
Hardware industry plastic parts, electronic cover, packing products like PET performs, caps and daily used commodity, Stationery, PVC pipe fitting, Agriculture irrigation, Automobile parts, plastic crates and so on.
