S Series Servo Motor Injection Molding Machine

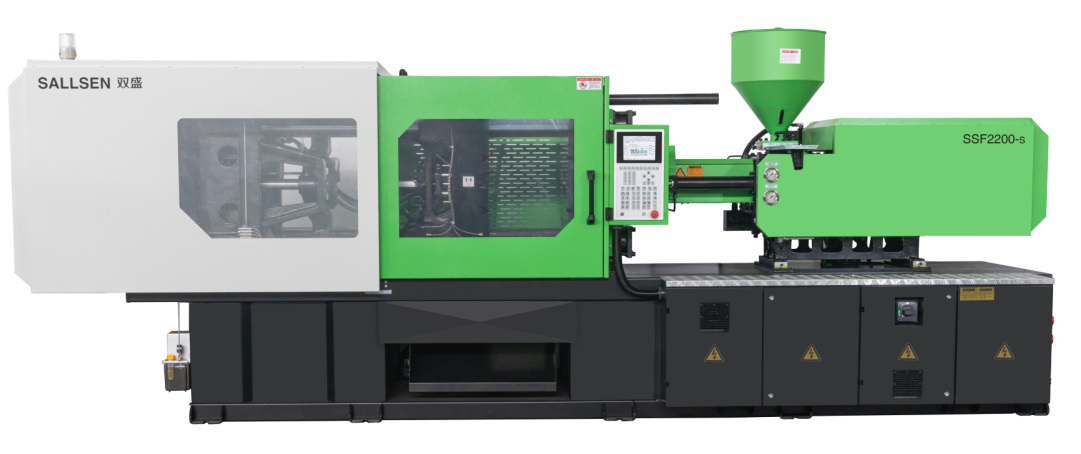

220ton Servo Motor Plastic Injection Moulding Machine(SSF2200-S)

high quality
220ton Servo Motor Plastic Injection Moulding Machine(SSF2200-S)
220ton Servo Motor Plastic Injection Moulding Machine(SSF2200-S)



Shuangsheng is the top injection molding machine manufacturer in China. It has been providing manufacturing and customized injection molding machine services to customers worldwide. The clamping force of the injection molding machine provided by our servo system ranges from 32T to 480T.

Features of Our Servo Injection Molding Machine

  • Double cylinder balanced injection system;
  • Multi-stage pressure &speed injection;
  • Back pressure adjustment device;
  • Low-pressure mould protection;
  • Single hydraulic core pulling and inserting;
  • Multiple hydraulic ejector knock-out;
  • Mechanical, electrical safety device;
  • Auto lubrication system;
  • Hydraulic pressure full proportional control;
  • Computer control system;
  • Molding data memory system;
  • Automatic mould adjust function;
  • Energy-saving with servo motor;

Parameters of 2200kn Injection Plastic Machine As Below

 SSF2200-S Parameters
Items Parameter Unit SSF2200-S
Injection Unit Screw diameter  mm A B C
45 50 55
Screw L/D ratio L/D 23.4 21 19.1
shot volume(theoretical) Cm3 397 490 593
injection weight(PS) g 362 446 540
OZ 12.8 15.7 19
Plasticizing Capacity g/s 27 34 40
injection rate g/s 190 235 280
injection pressure Mpa 207 168 139
screw speed rpm 210
Clamping unit clamp force KN 2200
open stroke mm 485
distance between tie bars (W*H) mm 530*530
max mould thickness mm 550
min mould thickness mm 200
ejector stroke mm 142
ejector force KN 70
ejector number PC 9
dia of mould location hole mm 160
Others max pump pressure Mpa 16
Servo motor power KW 27.8
heating power KW 14.8
Machine dimension(L*W*H) m 5.6*1.5*2.2
machine weight T 7
oil tank capacity L 320
Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.

Mold platen drawing

Parts That Can Be Produced

Customized injection molding machine solutions for you now

SSF2200-S injection molding machines applies to the injection molding process of various kinds of thermoplastics. Clamp force is 220T.
Advantages of servo motor
1.There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy saving injection molding machines will save 20%~80% energy and bring you prominent economic benefit.
2.High precision, high response: The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure, flow closed-loop control, allowing the repeat precision error to be less than 1%. It only takes 0.05 second to reach the largest output power.
3.Save the cooling water: No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is greatly reduced.
4.Super energy saving: Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and fixed speed motor. It can save 60% of the power.(Different kinds of products have different energy saving effects.
5.Low noise: The noise is below 78db. Servo motor has almost no noise when no movement of machine.
