S Series Servo Motor Injection Molding Machine

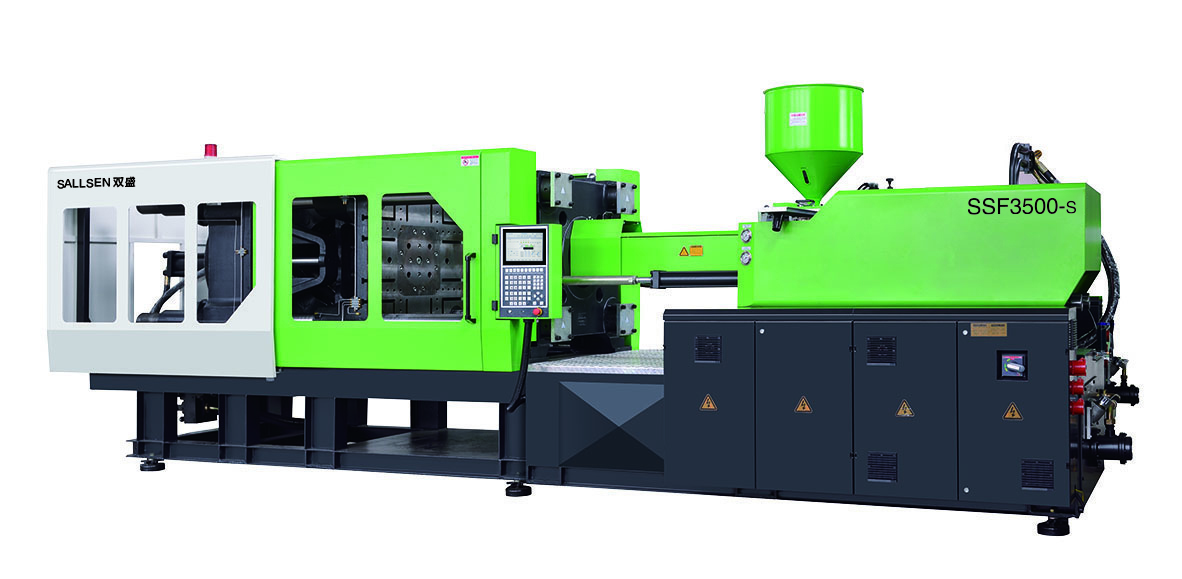

350T Servo Universal Plastic Injection Machine(SSF3500-S)

high quality
350T Servo Universal Plastic Injection Machine(SSF3500-S)
350T Servo Universal Plastic Injection Machine(SSF3500-S)

Description

Reviews

Shuangsheng is the top injection molding machine manufacturer in China. It has been providing manufacturing and customized injection molding machine services to customers worldwide. The clamping force of the injection molding machine provided by our servo system ranges from 32T to 480T.

Features of Our Servo Injection Molding Machine

  • Double cylinder balanced injection system;
  • Multi-stage pressure &speed injection;
  • Back pressure adjustment device;
  • Low-pressure mould protection;
  • Single hydraulic core pulling and inserting;
  • Multiple hydraulic ejector knock-out;
  • Mechanical, electrical safety device;
  • Auto lubrication system;
  • Hydraulic pressure full proportional control;
  • Computer control system;
  • Molding data memory system;
  • Automatic mould adjust function;
  • Energy-saving with servo motor;

Parameters of 3500kn Injection Plastic Machine As Below

SSF3500-S Parameters
Items Parameter Unit SSF3500-S
Injection Unit Screw diameter  mm A B C
65 70 75
Screw L/D ratio L/D 23.4 21.8 20.3
Shot volume(theoretical) Cm3 1145 1327 1524
Injection weight(PS) g 1042 1208 1386
OZ 36 42 48
Plasticizing Capacity g/s 58 65 72
Injection rate g/s 273 317 364
Injection pressure Mpa 194 168 146
Screw speed rpm 160
Clamping unit Clamp force KN 3500
Open stroke mm 650
Distance between tie bars (W*H) mm 720*670
Max mould thickness mm 740
Min mould thickness mm 250
Ejector stroke mm 160
Ejector force KN 100
Ejector number PC 13
Dia of mould location hole mm 160
Others Max pump pressure Mpa 16
Servo motor power KW 38.8
Heating power KW 20
Machine dimension(L*W*H) m 7.0*1.75*2.2
Machine weight T 11.8
Oil tank capacity L 600
Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.

Mold platen drawing



Parts That Can Be Produced

Customized injection molding machine solutions for you now

SSF3500-S injection molding machines applies to the injection molding process of various kinds of thermoplastics. Clamp force is 350T.



Advantages of servo motor

1.There is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy saving injection molding machines will save 20%~80% energy and bring you prominent economic benefit.

2.High precision, high response: The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure, flow closed-loop control, allowing the repeat precision error to be less than 1%. It only takes 0.05 second to reach the largest output power.

3.Save the cooling water: No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is greatly reduced.

4.Super energy saving: Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and fixed speed motor. It can save 60% of the power.(Different kinds of products have different energy saving effects.

5.Low noise: The noise is below 78db. Servo motor has almost no noise when no movement of machine.
