S Series Servo Motor Injection Molding Machine

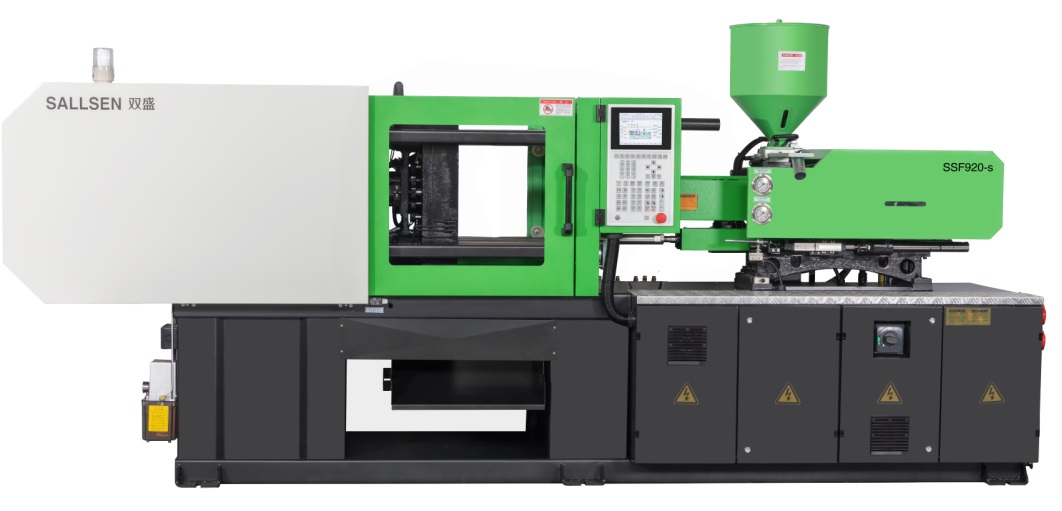

Large Tie Bar 92T Plastic Molding Machine(SSF920-S)

high quality
Large Tie Bar 92T Plastic Molding Machine(SSF920-S)
Large Tie Bar 92T Plastic Molding Machine(SSF920-S)



Shuangsheng is the top injection molding machine manufacturer in China. It has been providing manufacturing and customized injection molding machine services to customers worldwide. The clamping force of the injection molding machine provided by our servo system ranges from 32T to 410T.

Features of Our Servo Injection Molding Machine

  • Double cylinder balanced injection system;
  • Multi-stage pressure &speed injection;
  • Back pressure adjustment device;
  • Low-pressure mould protection;
  • Single hydraulic core pulling and inserting;
  • Multiple hydraulic ejector knock-out;
  • Mechanical, electrical safety device;
  • Auto lubrication system;
  • Hydraulic pressure full proportional control;
  • Computer control system;
  • Molding data memory system;
  • Automatic mould adjust function;
  • Energy-saving with servo motor;

Parameters of 920kn Injection Plastic Machine As Below

SSF920 Parameters
Items Parameter Unit SSF920
Injection Unit Screw diameter  mm A B C
32 35 38
Screw L/D ratio L/D 24.8 22 20
Shot volume(theoretical) Cm3 116 139 164
Injection weight(PS) g 105 126 149
Oz 3.7 4.4 5.2
Injection rate g/s 72 86 101
Injection pressure Mpa 232 194 164
Screw speed rpm 180
Clamping unit Clamp force KN 920
Open stroke mm 330
Distance between tie bars (W*H) mm 370*370
Max mould thickness mm 400
Min mould thickness mm 150
Ejector stroke mm 100
Ejector force KN 31
Ejector number PC 5
Dia of mould location hole mm 125
Others Max pump pressure Mpa 16
Servo motor power KW 12
Heating power KW 7.2
Machine dimension(L*W*H) m 4.2*1.2*1.65
Machine weight T 3.4
Oil tank capacity L 150
Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.

Mold platen drawing

Parts That Can Be Produced

Customized injection molding machine solutions for you now

SSF920-S injection molding machines, with its wide applications, clamp force 92Tonnage, are popularized among customers.
Clamping unit: The platens were designed using Finite Element Analysis software, ensuring a stable and rigid clamping system. Five-point inward moving toggle system ensures high rigidity and precision for mold clamping and also reducing stress and stain effects;
The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime.
Chrome plated tie bars, made from alloy structural steel are designed and manufactured for high rigidity and wear-resistance.
Extended clamp opening stroke with larger distance between the tie bar’s to meet the special molding requirements.
Injection unit:  A wide variety of screws are available for different polymer processing requirements. Special engineering materials are used to manufacture the screws to ensure optimal quality and processing life;
High quality nitride or chrome plated alloy screw with a nitrogen-treated barrel provided anti corrosion with high wear resistance for an extended working life.
The injection unit incorporates a dual-pillar supporting system with balanced twin cylinder injection unit for evenly distributed force and rapid screw motion;
Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering;
Hydraulic system: The hydraulic oil flow design applied modular block technology for rapid oil transfer and dynamic system response. Control valves are located in close proximity with each major control group.
Charge back pressure makes melting precise and stable, of which can meet all kinds of new products with different injection process.
World renowned control valves applied to precisely control every machine movement. Fixed pump system provides stable output, quick response, powerful strength.
Major hydraulic components and seals are sourced from world famous manufacturers providing high reliability and interchangeability.
Oil pipelines are positioned for aesthetic appearance and easy maintenance.
Control system: Screen protection function, extends the life of the screen
Super light emitting diode display status for input/output point, make it easier for operation and maintenance personnel to master system’s movement status
Set the keyboard lock function, prevent operators to make any changes of the stored information
Computer set and PID closed-loop controls heating temperature precisely, the temperature ranges from 0~399°C.
Complete close electrical control box, electrical components arranged neatly. Mutual interference, and has the function of dustproof and waterproof.
The control panel applies color screen technology, of which detect production process and display all kinds of malfunction analysis.
The latest computer system provides fast information response with user-friendly operation.
The toggle system uses oil-sleeve bushes lubricated by an automatically control central lubrication unit which provides excellent lubrication quality to all points and extends the clamping unit working life.
There are 2 type of lubrication agent, one is lubrication grease, the other is lubrication oil, per customer's final products requirements, medical parts prefer to use lubrication oil to avoid any contamination.
