K5 Series Fixed Pump Injection Molding Machine

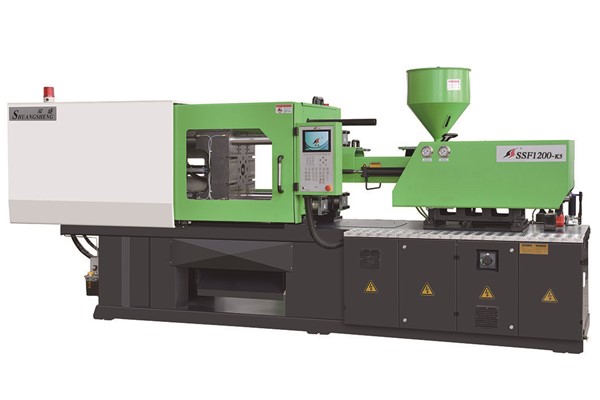

120T Cap Making Injection Molding Machine(SSF1200-K5)

high quality
120T Cap Making Injection Molding Machine(SSF1200-K5)
120T Cap Making Injection Molding Machine(SSF1200-K5)



Product Description

Model No SSF1200-K5 Brand Name SS mechanical
Delivery Date 30 days Power 380V,50HZ
Clamp Force 320kn Min-max Mould Height 80~260
Means of Transport Ocean Production Capacity 30 sets/month
Injection Weight 27g Space Between Tie Bars 245*195

Main Features

  • Automatic production, no secondary pollution, meets sanitary requirements
  • Continuous production and high efficiency
  • Controllable clamping force and good repeatability

Injection Molding Machine Parameters

SSF1200 Parameters
Items Parameter Unit SSF1200
Injection Unit Screw diameter  mm A B C
35 38 42
Screw L/D ratio L/D 23.8 22 19.9
Shot volume(theoretical) Cm3 192 226 277
Injection weight(PS) g 175 206 252
Oz 6.1 7.2 8.8
Plasticizing Capacity g/s 12 17 23
Injection rate g/s 89 105 128
Injection pressure Mpa 219 186 152
Screw speed rpm 190
Clamping unit Clamp force KN 1200
Open stroke mm 350
Distance between tie bars (W*H) mm 410*410
Max mould thickness mm 450
Min mould thickness mm 150
Ejector stroke mm 130
Ejector force KN 45
Ejector number PC 5
Dia of mould location hole mm 125
Others Max pump pressure Mpa 16
Pump motor power KW 13
Heating power KW 8.5
Machine dimension(L*W*H) m 4.4*1.28*1.9
Machine weight T 3.6
Oil tank capacity L 230
Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.


Industry: electrical instruments, auto parts, medical parts, packaging, daily necessities, aviation tableware, children's toys, construction pipes, laboratories, etc.

Products: electrical enclosures, socket plates, gears, cages, droppers, bottle caps, preforms, cups, disposable plastic cutlery, hot wheels, PVC pipe fittings, color plates, splines, etc.

Contact Us

We have established cooperations with agents from Argentina, Colombia, Chile, Mexico, South Africa, Netherland, Denmark, Spain, Israel, Turkey, Russia, Pakistan, Iran to market and provide after-sales service to our small injection molding machines. We warmly welcome agents and customers from more countries to cooperate with us.

If you have any query about our injection molding machine, just contact me at any time

SSF1200-K5 injection molding machines applies to the injection molding process of various kinds of thermoplastics.


Clamping unit: The platens were designed using Finite Element Analysis software, ensuring a stable and rigid clamping system. Five-point inward moving toggle system ensures high rigidity and precision for mold clamping and also reducing stress and stain effects;

The moving platen is fitted with adjustable slide support system to improve platen parallelism and provide better tie bar and mould protection and lengthen the working lifetime.

Chrome plated tie bars, made from alloy structural steel are designed and manufactured for high rigidity and wear-resistance.

Extended clamp opening stroke with larger distance between the tie bar’s to meet the special molding requirements.


Injection unit:  A wide variety of screws are available for different polymer processing requirements. Special engineering materials are used to manufacture the screws to ensure optimal quality and processing life;

High quality nitride or chrome plated alloy screw with a nitrogen-treated barrel provided anti corrosion with high wear resistance for an extended working life.

The injection unit incorporates a dual-pillar supporting system with balanced twin cylinder injection unit for evenly distributed force and rapid screw motion;

Nozzle alignment is provided using a simple mechanism with fine adjustment for accurate centering;


Hydraulic system: The hydraulic oil flow design applied modular block technology for rapid oil transfer and dynamic system response. Control valves are located in close proximity with each major control group.

Charge back pressure makes melting precise and stable, of which can meet all kinds of new products with different injection process.

World renowned control valves applied to precisely control every machine movement. Fixed pump system provides stable output, quick response, powerful strength.

Major hydraulic components and seals are sourced from world famous manufacturers providing high reliability and interchangeability.

Oil pipelines are positioned for aesthetic appearance and easy maintenance.


Control system: Screen protection function, extends the life of the screen

Super light emitting diode display status for input/output point, make it easier for operation and maintenance personnel to master system’s movement status

Set the keyboard lock function, prevent operators to make any changes of the stored information

Computer set and PID closed-loop controls heating temperature precisely, the temperature ranges from 0~399°C.

Complete close electrical control box, electrical components arranged neatly. Mutual interference, and has the function of dustproof and waterproof.

The control panel applies color screen technology, of which detect production process and display all kinds of malfunction analysis.

The latest computer system provides fast information response with user-friendly operation.

The toggle system uses oil-sleeve bushes lubricated by an automatically control central lubrication unit which provides excellent lubrication quality to all points and extends the clamping unit working life.

There are 2 type of lubrication agent, one is lubrication grease, the other is lubrication oil, per customer's final products requirements, medical parts prefer to use lubrication oil to avoid any contamination.
